1. Introduction
As manufacturing enterprises gradually shift their business focus from providing industrial products to offering a combination of products and services, and rely on services to enhance profitability, business models or strategies focused on solutions are becoming mainstream. This transformation, which is from selling products and basic services to selling solutions or product service systems (PSSs), is regarded as service-oriented. Many manufacturing enterprises view service-oriented services as an important way to create customer value, improve customer satisfaction, generate differentiated competitive advantages, improve business performance, and promote economic development. PSS [1], as an emerging concept of maintaining product functionality for customers, has appeared. It can optimize resource utilization and improve enterprise competitiveness [2,3]. Scheme evaluation is a key part of the PSS design and development course [4,5], and the rationality of the evaluation results directly influences the success or failure of the design. Due to the subjectivity and uncertainty of services, PSS scheme evaluation is a typical mixed multi-attribute decision-making problem. Under the era of big data, the application of big data methods [6,7] in decision-making processes also can provide support for the optimization of PSS evaluation decisions.
Due to the complexity of PSS evaluation problems, traditional methods [8-10] are powerless to make PSS evaluation decisions, which is mainly reflected as following aspects:
1) The process of selecting the indexes in the establishment of the PSS evaluation index system is subjective. The comprehensiveness of indexes is also low.
2) When calculating the index weights, subjective or objective weighting methods are always adopted separately, which has certain limitations.
3) The convenient calculation method for index values is lacked. In response to these shortcomings in existing research, this article proposes a PSS evaluation method based on big data, which is a hybrid model of multi weight combination and improved TOPSIS by relative entropy (RE).
3. Index System
The opinions of stakeholders on PSS evaluation decisions mainly exist in forums, online discussions, user comments, and other channels. Using web crawlers can obtain these big data. This article uses text analysis to conceptualize and segment these big data, and conducts word frequency statistics. The words which have no actual meaning or clear direction need to be excluded in order to obtain a true highfrequency word directory. The relative relationship between two high-frequency words is generally represented by their co-occurrence matrix. In a co-occurrence matrix, if the matrix value of is larger, the correlation between two high-frequency words is stronger. Based on the analysis of high-frequency words, its semantic network diagram can be obtained through social network analysis. The semantic network diagram example of high-frequency words is shown in Fig. 2.

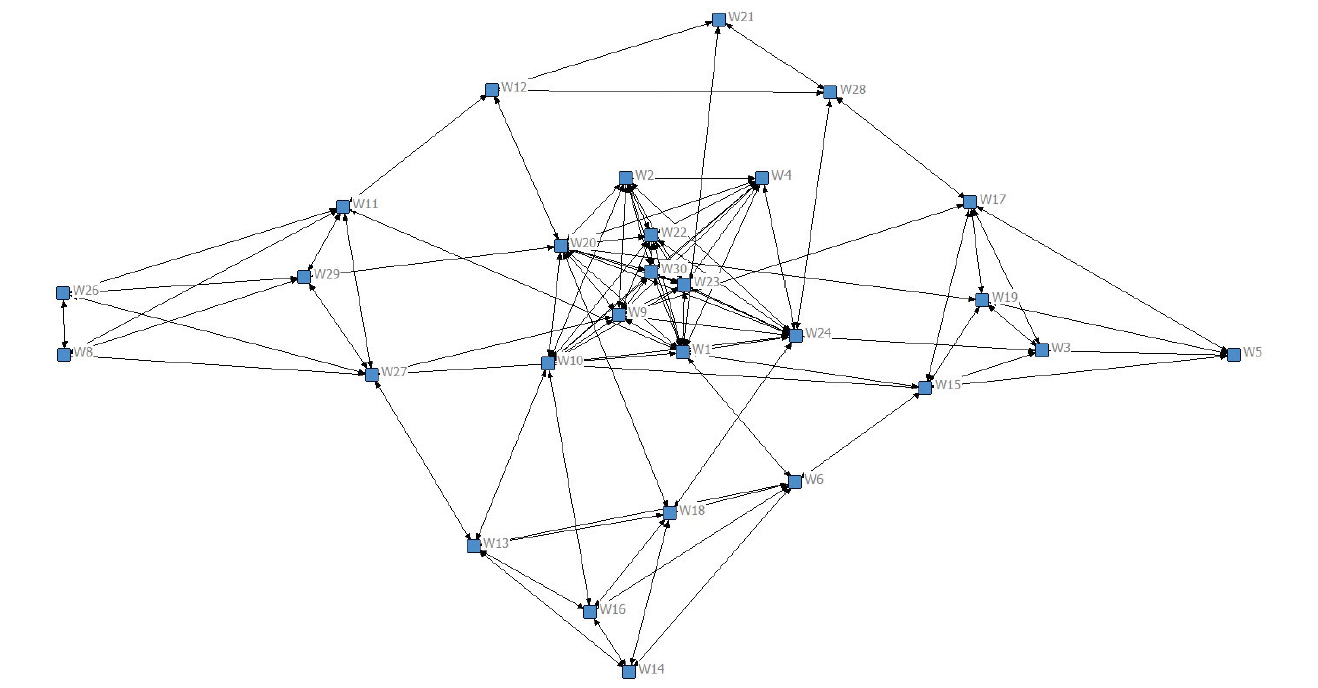

The semantic network diagram example of high-frequency words.
According to Fig. 2, this article classifies high-frequency words based on logical relationships and interrelationships. The obtained category is the secondary index for PSS evaluation. Finally, this article reclassifies the secondary indicators and obtains the primary indicators. A tree shaped and multi-level PSS evaluation decision index system has been constructed, as shown in Table 1.
In Table 1, there are 6 first-level index and 19 second-level index. Here, [TeX:] $$I_1$$ means customer expectation degree, [TeX:] $$I_2$$ means customer acceptance degree, [TeX:] $$I_3$$ means system convenience degree, [TeX:] $$I_4$$ means service quality degree, [TeX:] $$I_5$$ means product quality degree, [TeX:] $$I_6$$ means degree of employment opportunities provided, [TeX:] $$I_7$$ means profit ability degree, [TeX:] $$I_8$$ means employee working environment, [TeX:] $$I_9$$ means service cost degree of providing PSS, [TeX:] $$I_{10}$$ means service positioning degree, [TeX:] $$I_{11}$$ means market size degree, [TeX:] $$I_{12}$$ means investment cost degree, [TeX:] $$I_{13}$$ means relationship with competitors, [TeX:] $$I_{14}$$ means government financial support degree, [TeX:] $$I_{15}$$ means support degree of government laws and regulations, [TeX:] $$I_{16}$$ means user health and safety assurance degree, [TeX:] $$I_{17}$$ means [TeX:] $$CO_2$$ emission degree, [TeX:] $$I_{18}$$ means harmful substance emission degree, and [TeX:] $$I_{19}$$ means resource consumption degree.
4. Index Value Determination
There are p PSS schemes and q stakeholders. The evaluation value (TFN) of scheme [TeX:] $$s(1 \leq s \leq p)$$ given by stakeholder [TeX:] $$r(1 \leq r \leq q)$$ on index [TeX:] $$I_i$$ is [TeX:] $$\tilde{x}_{s, i}^r=\left(a_{s, i}^r, b_{s, i}^r, c_{s, i}^r, d_{s, i}^r\right) .$$ Then, the integrated value of all stakeholders can be solved as follows:
While calculating the index value of scheme s on index [TeX:] $$I_i$$, the index value is evaluated by four stakeholders. The vague comments contain nine level scales: extremely good [TeX:] $$\left(L_1\right)$$, strongly good [TeX:] $$\left(L_2\right)$$, obviously good [TeX:] $$\left(L_3\right)$$, slightly good [TeX:] $$\left(L_4\right)$$, middle [TeX:] $$\left(L_5\right)$$, slightly bad [TeX:] $$\left(L_6\right)$$, obviously bad [TeX:] $$\left(L_7\right)$$, strongly bad [TeX:] $$\left(L_8\right)$$ and extremely bad [TeX:] $$\left(L_9\right)$$. The four stakeholders evaluated the index value using a vague comment as shown in Table 2.
Stakeholder assessments of scheme s on index [TeX:] $$I_i$$
The fuzzy values corresponding to the vague comments of four stakeholders are [TeX:] $$\tilde{x}_{s, i}^1=(7 / 3,3,17 / 3,9),$$ [TeX:] $$\tilde{x}_{s, i}^2=(3 / 7,7 / 13,9 / 11,1),$$ [TeX:] $$\tilde{x}_{s, i}^3=(1,11 / 9,13 / 7,7 / 3),$$ and [TeX:] $$\tilde{x}_{s, i}^4=(3 / 2,13 / 7,3,4).$$ Then the group decision evaluation value is obtained as [TeX:] $$\tilde{x}_{s, i}=\left(a_{s, i}, b_{s, i}, c_{s, i}, d_{s, i}\right),$$ here [TeX:] $$a_{s, i}=(7 / 3+3 / 7+1+3 / 2) / 4=1.3155, b_{s, i}=(3+7 / 13+11 / 9+13 / 7) / 4=1.6545, c_{s, i}=(17 / 3+9 / 11+13 / 7+3) / 4=2.8355 \text {, and } d_{s, i}=(9+1+7 / 3+4) / 4=4.0833 \text {. }$$
By the gravity center formula of TFN, the real number form of [TeX:] $$\tilde{x}_{s, i}$$ is obtained as follows:
For [TeX:] $$\tilde{x}_{s, i}=(1.3155,1.6545,2.8355,4.0833),$$ its corresponded real number is [TeX:] $$x_{s, i}=2.5026 \text {. }$$
5. PSS Scheme Alternative Evaluation
5.1 Multi-Weight Combination
A single weighting method often leads to unstable evaluation results. In order to make the weighting of evaluation indexed more fair, scientific and reasonable, a multi-weight combination approach was developed, as shown in Fig. 3.

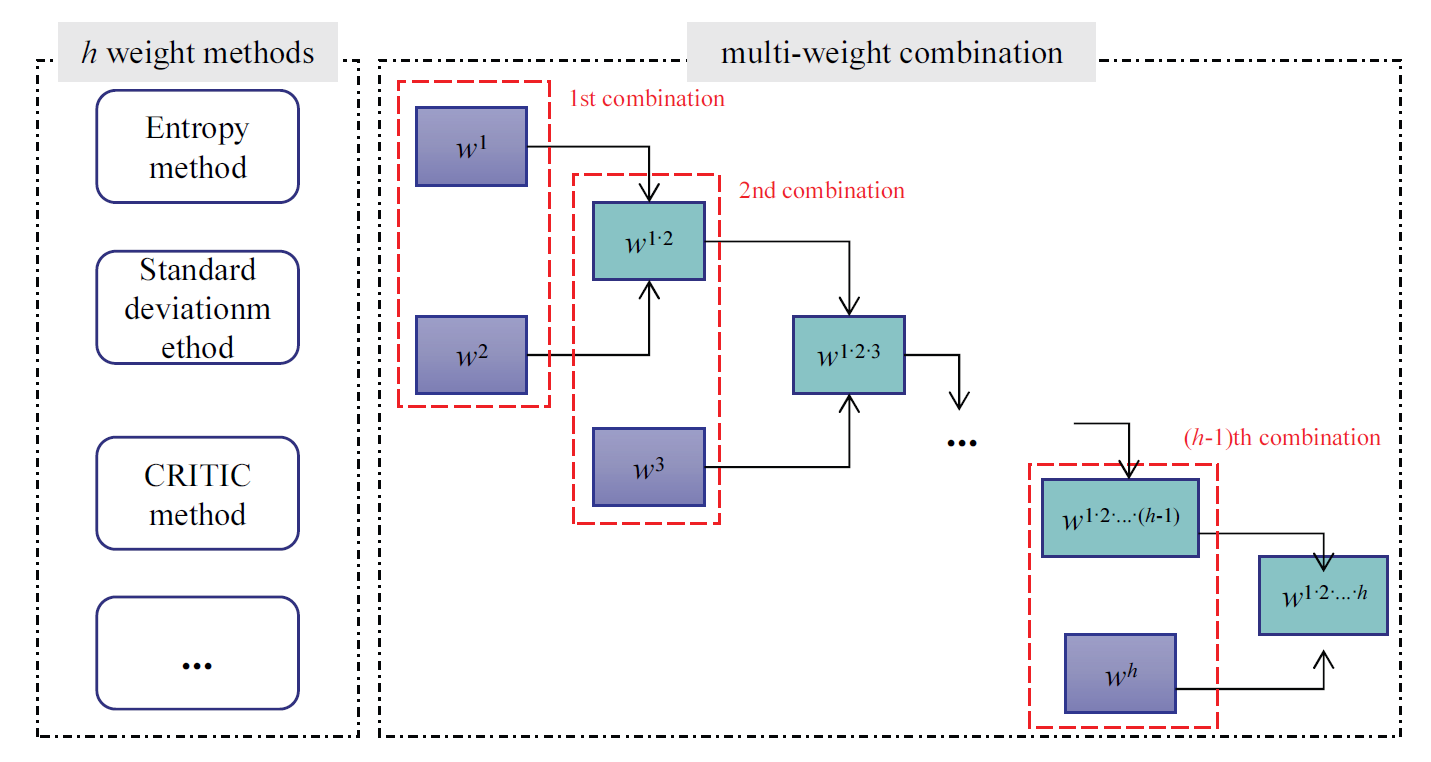

The multi-weight combination process.
By ℎ different weighting methods, the weight vectors are obtained are as follows:
In the multi-weight combination process, there are ℎ − 1 combination operations. In the first combination operation [TeX:] $$\left(w^1 \text { and } w^2\right),$$ the combination weight vector [TeX:] $$w^{1 \cdot 2}$$ is shown as follows.
where [TeX:] $$\tau_1 \text { and } \tau_2$$ are the combination coefficients corresponding to [TeX:] $$w^1 \text { and } w^2 \text {, }$$ and [TeX:] $$\tau_1 \geq 0, \tau_2 \geq 0, \tau_1+\tau_2=1.$$
The total weight contribution discrepancy (TWCD) of [TeX:] $$w^1 \text { and } w^2$$ is defined as follows.
Therefore, a multi-weight combination approach is built to make the weight contributions of [TeX:] $$w^1 \text { and } w^2$$ balanced, which is as following.
Two combination coefficients are obtained as follows:
Then [TeX:] $$w^{1 \cdot 2} \text { and } w^3$$ are combined and their combination weight is [TeX:] $$w^{1 \cdot 2 \cdot 3}$$. At last the combination weight vector is obtained as follows.
5.2 Improved TOPSIS by RE
Between two n-dimensional uncertainty systems [TeX:] $$\theta^A=\left(\theta_1^A, \theta_2^A, \ldots, \theta_n^A\right)$$ and [TeX:] $$\theta^B=\left(\theta_1^B, \theta_2^B, \ldots, \theta_n^B\right)$$, the difference degree can be expressed by RE [11-13] as follows:
where [TeX:] $$\theta_k^A \text { and } \theta_k^B$$ are the occurrence chance of uncertain state k in systems [TeX:] $$\theta^A \text { and } \theta^B.$$
RE has two features: (1) [TeX:] $$R E^{A, B} \geq 0,$$ (2) only if [TeX:] $$A=B, R E^{A, B}=0.$$
According to the calculation in the previous text, the index value matrix is [TeX:] $$X=\left[x_{s, i}\right]_{p \times N},$$ and the weight vector is [TeX:] $$w^{1 \cdot 2 \cdot \ldots \cdot h}.$$ Then the weighted index value matrix can be solved as [TeX:] $$T=\left[t_{s, i}\right]_{p \times N},$$ where [TeX:] $$t_{s, i}=w_i^{1 \cdot 2 \cdot \ldots \cdot h} t_{s, i}.$$ The positive and negative ideal point (PIP and NIP) can be solved as:
where [TeX:] $$t_i^{+}=\max \left\{t_{1, i}, t_{2, i}, \ldots, t_{p, i}\right\}$$ and [TeX:] $$t_i^{-}=\min \left\{t_{1, i}, t_{2, i}, \ldots, t_{p, i}\right\}$$
The index value of PSS scheme s is solved as [TeX:] $$T^s=\left[t_{s, 1}, t_{s, 2}, \ldots, t_{s, i}, \ldots, t_{s, N}\right].$$ Then the RE from [TeX:] $$T^s$$ to PIP [TeX:] $$T^{+}$$ is calculated as:
The RE from [TeX:] $$T^s$$ to NIP [TeX:] $$T^{-}$$ is calculated as:
For PSS scheme s, the RE closeness is calculated as:
Here RE closeness [TeX:] $$\varphi^S$$ has three characteristics: (1) if [TeX:] $$T^s=T^{+}, \varphi^s=1$$; (2) if [TeX:] $$T^s=T^{-}, \varphi^s=0$$; (3) if [TeX:] $$T^{-} \neq T^s \neq T^{+} \text {and } T^s \rightarrow T^{+}, \varphi^s \rightarrow 1.$$
6. Case Study
Here shows a PSS evaluation case in a printer company. It is assumed that there are seven PSS schemes (P1, P2, P3, P4, P5, P6 and P7), and there are 60 persons in the stakeholder group, namely PSS customers (12 persons), customer demand analysts (12 persons), PSS entrepreneurs (12 persons), social and environmental researchers (12 persons) and PSS design engineers (12 persons).
Taking the performance of PSS scheme P1 on index [TeX:] $$I_1$$ as an example, six stakeholders thinks [TeX:] $$L_1$$, one stakeholder thinks [TeX:] $$L_2$$, eight stakeholders think [TeX:] $$L_3$$, fifteen stakeholders think [TeX:] $$L_4$$, six stakeholder thinks [TeX:] $$L_5$$, fourteen stakeholders think [TeX:] $$L_6$$, three stakeholders think [TeX:] $$L_7$$, no stakeholder thinks [TeX:] $$L_8$$ and seven stakeholders think [TeX:] $$L_9$$. The fuzzy opinion of P1 on the19 indexes is counted as shown in Table 3.
Then the index value of P1 in TFN form is solved and then we convert it to the real number form as follows (Tables 4 and 5).
By the same way, the index values of other six PSS schemes can be obtained (Table 6).
By entropy approach, CRITIC method and standard deviation approach, the corresponding weight vectors are obtained as [TeX:] $$w^1, w^2 \text { and } w^3,$$ respectively. Based on multi-weight combination, the combination weight vector [TeX:] $$w^{1 \cdot 2 \cdot 3}$$ is obtained as shown in Table 7.
The vague assessment opinion of P1
The index value of P1 (indexes [TeX:] $$I_1-I_{10}$$)
The index value of P1 (indexes [TeX:] $$I_{11}-I_{19}$$)
The index value matrix of the seven PSS schemes
The multi-weight combination
Then the weighted index value matrix is obtained as [TeX:] $$T=\left[t_{s, i}\right]_{6 \times 19}$$ (Table 8). Therefore, PIP and NIP are obtained (Table 8).
The REs to PIP and NIP and RE closeness are calculated in Table 9.
Based on RE closeness, the ranking result of seven PSS alternatives is also shown in Table 9, in which P3 is the best PSS alternative.
The weighted index values, PIP and NIP
REs to PIP and NIP and RE closeness
7. Discussion
Due to the shortcomings of traditional TOPSIS, several modified TOPSIS methods have been presented by scholars through replacing Euclidean distance with other concepts [14,15]. We compared the results of the proposed model (modified TOPSIS by RE), traditional TOPSIS, modified TOPSISs [14,15] as shown in Table 10.
As shown in Table 10, the evaluation results of the proposed model and traditional TOPSIS are identical, which can prove the correctness and effectiveness of the proposed model. Because the existing literature have proved that traditional TOPSIS has obvious and clear shortcomings, traditional TOPSIS is not advisable. The overall evaluation trend of the four models is generally consistent, and P3, P7 and P2 are better than P1, P4 and P5, while P6 is about in the middle. However, by modified TOPSIS in Reference [14] the evaluation result of P2 and P3 is obviously different from other three models, and the opposite evaluation result appears. By modified TOPSIS in Reference [15] the closeness of P1 and P6 are completely equal and the evaluation of them cannot be executed. Therefore, modified TOPSIS models [14,15] cannot meet the evaluation requirements in some special scenarios. Based on the data in Table 10, the proposed model in which TOSIS is modified by changing Euclidean distance as RE can compensate for the shortcomings of existing modified TOPSIS methods.
The comparing of the results of four models
8. Conclusion
To achieve rapid evaluation of personalized PSS schemes, this paper proposes a new method. The feasibility, effectiveness and simplicity of the proposed method for complex evaluation problems in mixed uncertain environments were verified through implementation examples. The next step of the research will consider the impact of uncertainty in user satisfaction evaluation information on PSS scheme evaluation.
