1. Introduction
Advancements in information technology are driving innovation in modern transportation systems. Smart transportation systems recognize IT as a core enabler for optimizing urban traffic flow, enabling safer and more efficient mobility. In particular, traffic signal control is critical to reducing traffic congestion and travel time, with a significant impact on traffic flow in complex urban environments.
Advancements in information technology are driving innovation in modern transportation systems. Smart transportation systems recognize IT as a core enabler for optimizing urban traffic flow, enabling safer and more efficient mobility. In particular, traffic signal control is critical to reducing traffic congestion and travel time, with a significant impact on traffic flow in complex urban environments.
This paper is organized as follows. Section 2 reviews related work on traffic signal control using RL and LLMs. Section 3 describes the dueling double deep q-network (D3QN) architecture, the Markov decision process (MDP) design of the proposed model, and the LLM and prompt configurations applied. In Section 4, we compare the performance of traffic signal control under LLM-based weight adjustments and evaluate the efficiency of the proposed model under various weather conditions. Finally, Section 5 presents the conclusion and discusses directions for future research.
2. Related Work
Table 1 summarizes related studies and their limitations. First, [4] formulated the traffic signal control problem as an MDP and solved it using deep Q-network (DQN), emphasizing the impact of reward function weights and introducing a single-objective reward function. In [5], a traffic signal control model using deep deterministic policy gradient (DDPG) was developed for real-world intersections, evaluating performance metrics such as waiting time, queue length, and passing vehicles to determine the optimal reward function. These studies used single-objective reward functions, which limited their ability to account for multiple factors simultaneously, resulting in challenges in balancing performance. Notably, [4] highlighted the difficulty of setting appropriate weights for the reward components. To address these challenges, LLMs have been increasingly applied in traffic signal control to support refined decision-making under real-time conditions. In [6], light GPT was used to analyze intersection traffic flow and adjust signal timings. However, due to the limitations of LLMs in learning behavior-reward feedback, it is difficult for LLMs alone to learn an optimal policy. [7] integrated LLM feedback with proximal policy optimization (PPO)-based RL for traffic signal control. Nevertheless, the feedback generated by the LLM was not directly incorporated into policy updates, limiting the model’s ability to optimize the policy effectively.
This study addresses these limitations by applying an LLM to D3QN-based traffic signal control, proposing a novel algorithm that dynamically adjusts the weights of a multi-objective reward function in real time. This approach aims to reflect the complex interactions within intersections and achieve efficient traffic signal control.
3. System Model
3.1 D3QN-LLM Framework
In this study, a D3QN-based RL agent is deployed at a single intersection to observe real-time traffic conditions and control signals accordingly. Fig. 1(a) illustrates the single-intersection environment used in this study, where each lane supports straight, left-turn, and right-turn movements. The lane configuration follows that proposed in [7] and is designed to enhance the realism of the traffic signal control experiment by considering directional differences in traffic volume. The proposed model, D3QN-LLM, integrates D3QN with an LLM, and its framework is shown in Fig. 1(b). While previous studies have primarily used DQN or PPO algorithms, PPO often incurs higher overhead in discrete and simple action spaces. Consequently, this study employs D3QN, which mitigates the overestimation issues associated with DQN. Fig. 2 illustrates the process within an intersection environment.

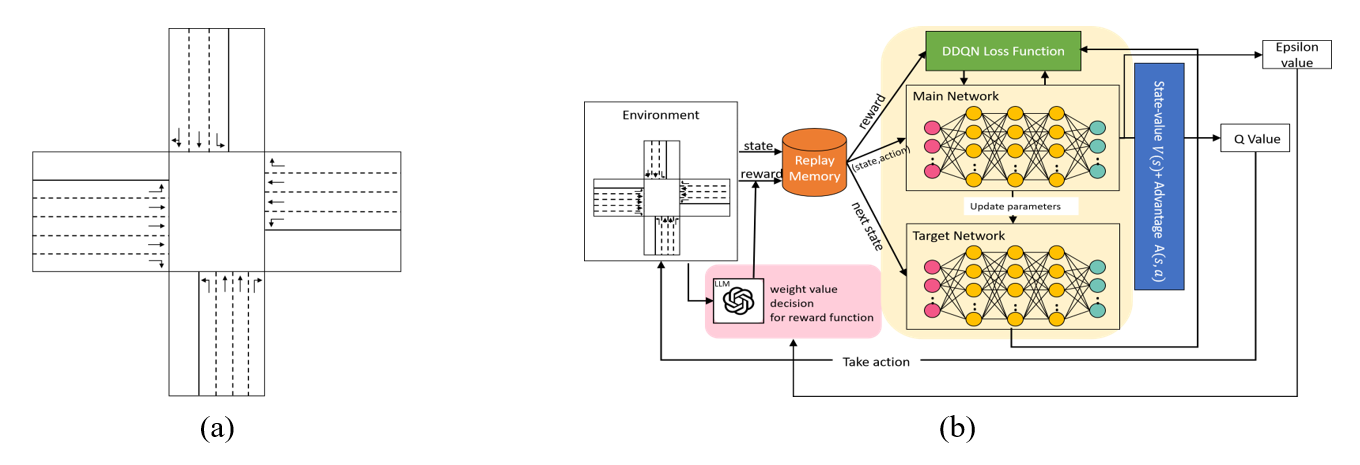

(a) Single intersection and (b) D3QN-LLM framework.

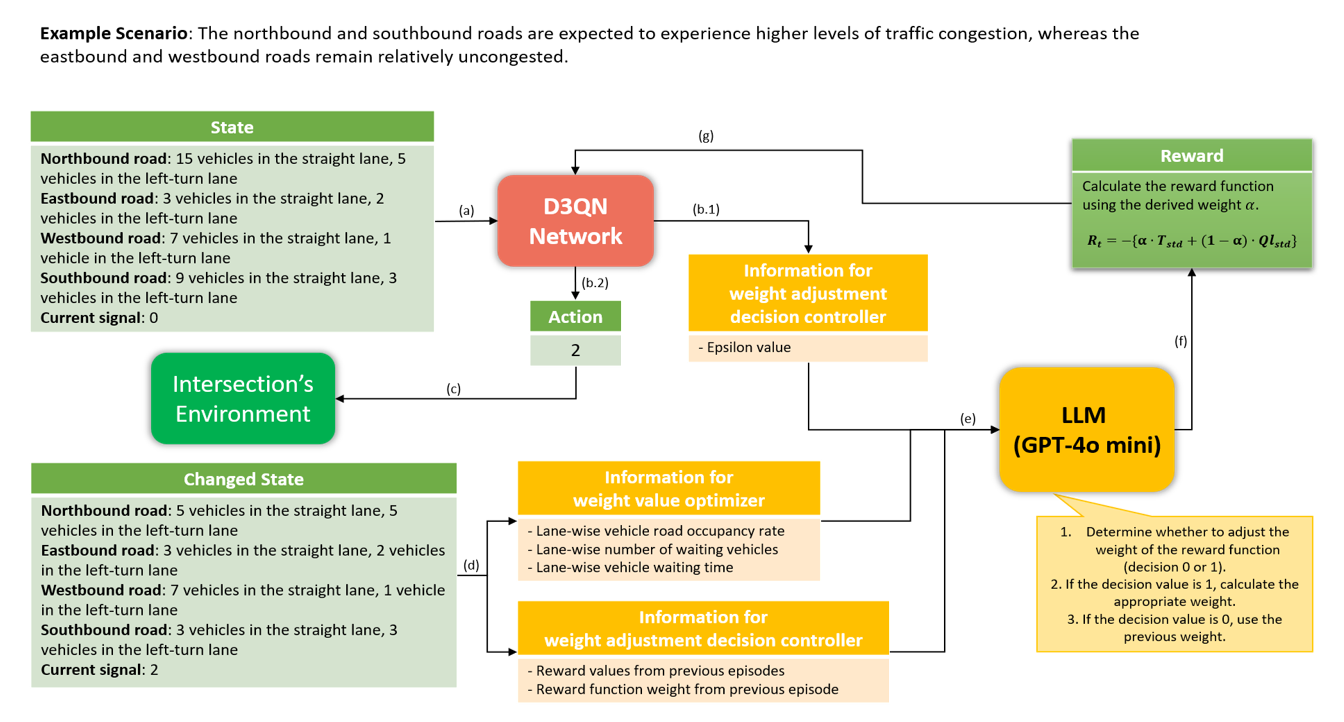

Flow of the proposed methodology: (a) state information is used as input for (b.2) the D3QN network, which selects an action. This action is then reflected in (c) the intersection state, which is subsequently updated. Based on the updated intersection state, (d) information for weight adjustment is generated. The data derived during (b.1) the learning process of the D3QN network is passed to (e) the LLM to determine the appropriate weight for the reward function. Subsequently, (f) the reward function is calculated using the determined weight, and (g) it is used to update the Q-values. These Q-values indirectly optimize the policy responsible for selecting the optimal action. This process is repeated continuously.
3.2 MDP
This study proposes a D3QN-LLM algorithm to optimize traffic signal control at a single intersection, aiming to minimize average travel time. The definitions of state [TeX:] $$\left(S_t\right),$$ action [TeX:] $$\left(A_t\right),$$ and reward [TeX:] $$\left(R_t\right),$$ used in this study are as follows.
The state [TeX:] $$\left(S_t\right),$$ at time t represents the number of vehicles in each lane (straight and left-turn) for all directions (east, west, south, north) at the intersection. It also includes the currently assigned signal [TeX:] $$\left(P_t\right),$$ for the intersection. This study focuses on controlling straight and left-turn lanes while excluding right-turn lanes, which typically have minimal impact on traffic flow. For the east direction, the number of vehicles in the straight lane is denoted by [TeX:] $$N_{\text {east_s,t }},$$ and the number in the left-turn lane is denoted by [TeX:] $$N_{\text {east_l,t }}.$$ For the west direction, the number of vehicles in the straight lane is denoted by [TeX:] $$N_{\text {west_s,t }},$$ and the number in the left-turn lane by [TeX:] $$N_{\text {west_l,t }}.$$ For the south direction, the number of vehicles in the straight lane is denoted by [TeX:] $$N_{\text {south_s,t }},$$ and the number in the left-turn lane by [TeX:] $$N_{\text {south_l,t }}.$$ For the north direction, the number of vehicles in the straight lane is denoted by [TeX:] $$N_{\text {north_s,t }},$$ and the number in the left-turn lane by [TeX:] $$N_{\text {north_l,t }}.$$ Therefore, the state [TeX:] $$S_t$$ is defined as shown in Eq. (1):

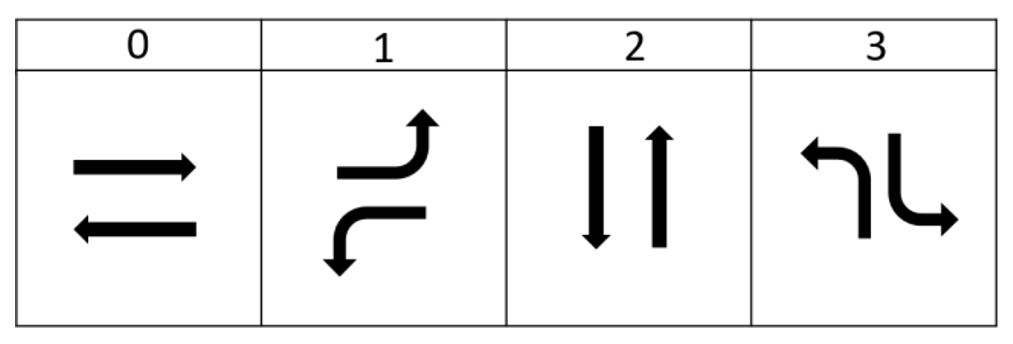

The agent considers the current state [TeX:] $$S_t$$ to select and perform the appropriate action [TeX:] $$A_t.$$ The action [TeX:] $$A_t$$ is defined as shown in Eq. (2), and Fig. 3 illustrates the directions to which the green signal is assigned.
The agent receives a reward [TeX:] $$R_t$$ after performing action [TeX:] $$A_t.$$ This study aims to minimize average travel time at intersections. The reward function, defined in Eq. (3), is based on waiting time and queue length, which are key factors affecting travel time, as referenced in [4]. Waiting time refers to the duration a vehicle remains stopped at a red signal, and queue length indicates the number of stopped vehicles. These metrics are measured within a 3 km radius of the intersection to calculate travel time. To ensure fair signal distribution, standard deviations [TeX:] $$T_{s t d} \text { and } Q l_{s t d}$$ are used, where [TeX:] $$T_{s t d}$$ measures variations in waiting time and [TeX:] $$Q l_{s t d}$$ measures variations in queue length by direction. These standard deviations help prevent signal bias in favor of specific directions. Additionally, α, a weight parameter ranging from 0 to 1, is dynamically adjusted according to traffic conditions.
3.3 LLM and Prompt Design

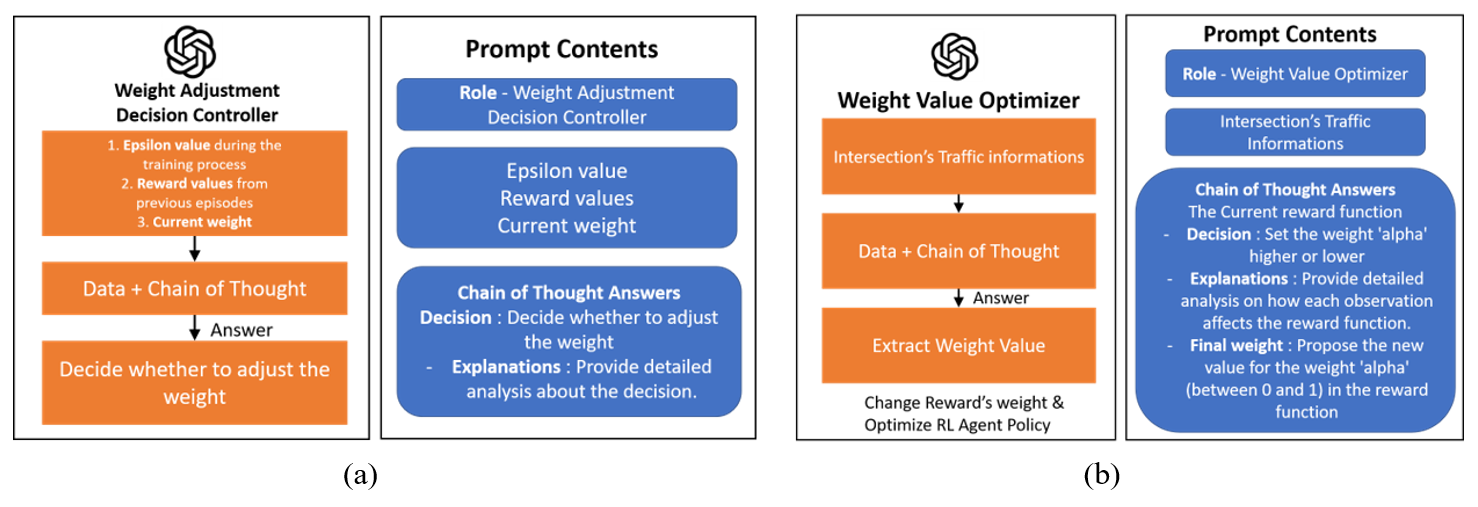

Effective learning requires an appropriate weight α, but manual tuning is complex and hinders the learning of an optimal policy. This study employs an LLM to assess the need for weight adjustment and derive the optimal weight based on post-action traffic conditions. Open AI’s GPT-4o mini, a lightweight version of GPT-4o, was selected as the LLM for its balance between performance and efficiency. Fig. 4 presents the LLM prompt for weight adjustment, designed with reference to [7]. The weight adjustment decision controller determines the need for weight adjustment by analyzing the epsilon value and reward values from previous episodes. The epsilon value reflects the exploration-exploitation balance in D3QN, while past rewards evaluate the impact of weight adjustments. Based on this decision, the weight value optimizer analyzes traffic conditions to derive the optimal weight α.
(a) Weight adjustment decision controller and (b) weight value optimizer.
4. Performance Analysis
4.1 Experimental Setting
The intersection traffic dataset for the experiments was generated using Simulation of Urban Mobility (SUMO) [8], with performance metrics such as:
The intersection traffic dataset for the experiments was generated using Simulation of Urban Mobility (SUMO) [8], with performance metrics such as:
- Average queue length (AQL): The average number of vehicles waiting at the intersection, indicating traffic congestion;
- Average queue length (AWT): The average time vehicles wait at traffic signals, emphasizing efforts to reduce driver delays.
In the first experiment, we compared fixed-weight cases with those where the weights were dynamically adjusted by the LLM, under the assumption of periodic adjustment. In the second experiment, the LLM selectively adjusted the weights based on necessity, evaluating the effectiveness of weight adjustment decisions at specific episodes. In the third experiment, the experimental environment was divided into three weather conditions, as shown in Table 2, and SUMO parameters were configured for each condition [9] to compare the performance of the proposed model with existing methods.
SUMO parameter settings based on weather
4.2 Experimental Result
Fig. 5 illustrates the results of the first experiment. When the weight α was set to 0.5 and the adjustment interval was 10 or 50, stable performance was observed for ATT, AQL, and AWT. Specifically, when the initial weight was set to 0.5 and dynamically adjusted using the LLM, ATT improved by approximately 25%, AQL by 33%, and AWT by 40% compared to fixed weights. Overall, dynamic adjustment using the LLM significantly enhanced performance compared to fixed weights.

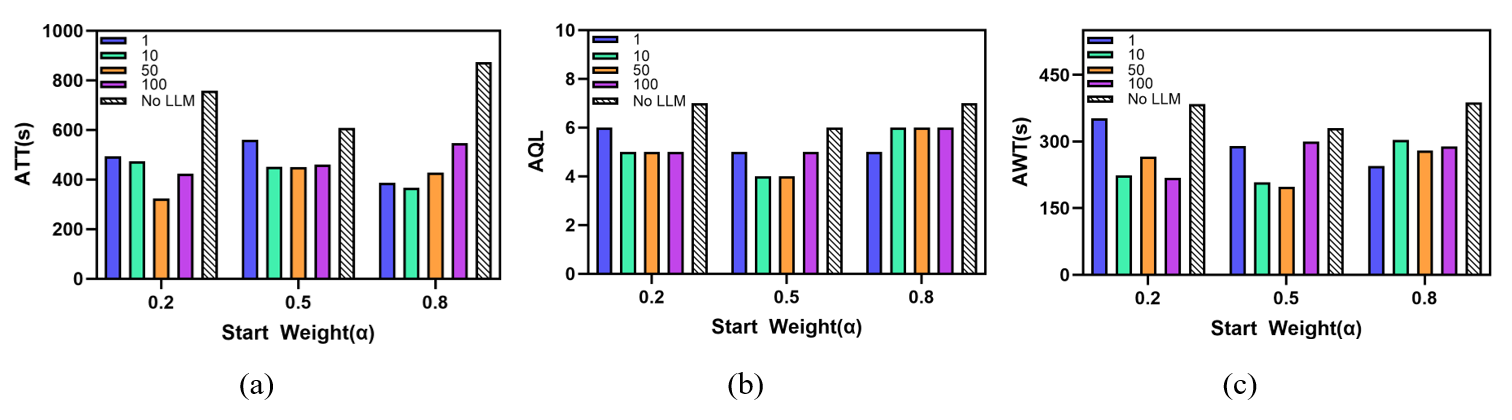

Comparison of (a) ATT, (b) AQL, and (c) AWT performance with initial weight settings (0.2, 0.5, and 0.8): fixed weight (No LLM) vs. dynamic weight adjustment every 1, 10, 50, and 100 episodes.
Fig. 6 illustrates the results of the second experiment. Unlike the first experiment with fixed weight adjustment intervals, the LLM assessed the need for weight adjustment at each episode and adjusted the weights accordingly. Adjusting the weights using the LLM was found to be effective during episodes 30 to 100, where the exploration rate decreased and the exploitation rate increased. Overall, as vehicle arrival rates increased, ATT, AQL, and AWT rose. However, from episode 70 onward, these metrics remained relatively low due to dynamic weight adjustment. Based on these findings, the proposed model was developed.

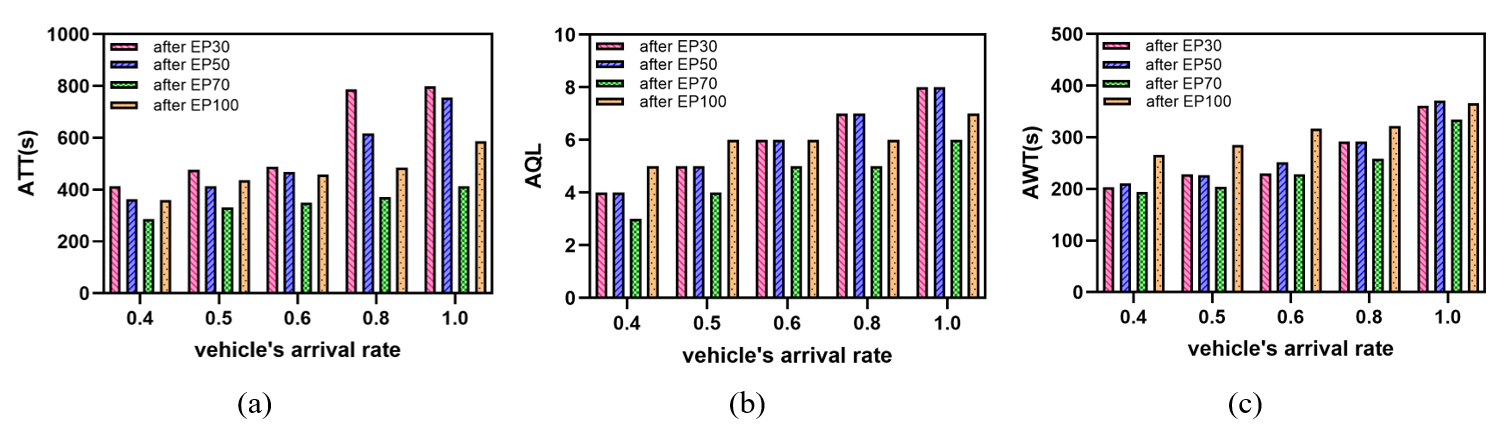

Comparison of (a) ATT, (b) AQL, and (c) AWT performance based on vehicle arrival rate and weight adjustment initiation episode (after episode 30, 50, 70, and 100).
Figs. 7–9 illustrate the performance comparison between the proposed model and other methods under different vehicle arrival rates in sunny, rainy, and snowy weather conditions, respectively.
The other methods used for comparison are as follows.
- ILLM-TSC [7]: ILLM-TSC, a PPO-based traffic signal control model, minimizes vehicle waiting time with a single-objective reward function and guides the RL agent's actions through LLM feedback.
- LIT-TSC [4]: LIT-TSC is a DQN-based traffic signal control model that uses queue length in the reward function to minimize travel time.
- FIXED-TSC: FIXED-TSC is a traffic signal control model that uses a fixed sequence of green signals.

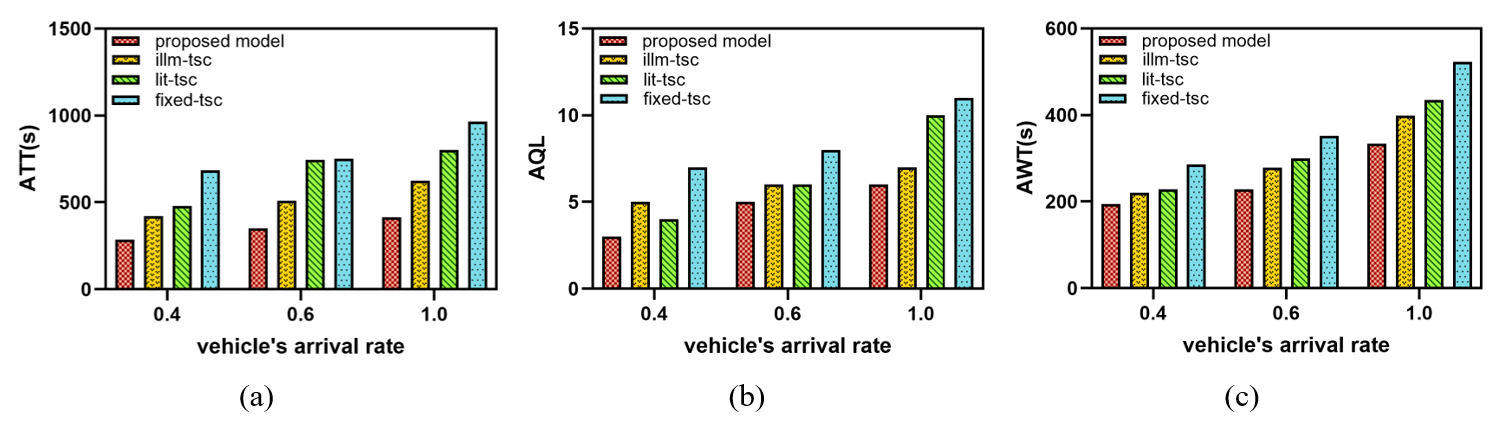

Performance comparison of proposed model, ILLM-TSC, LIT-TSC, and FIXED-TSC in sunny weather: (a) ATT, (b) AQL, and (c) AWT by vehicle arrival rate.

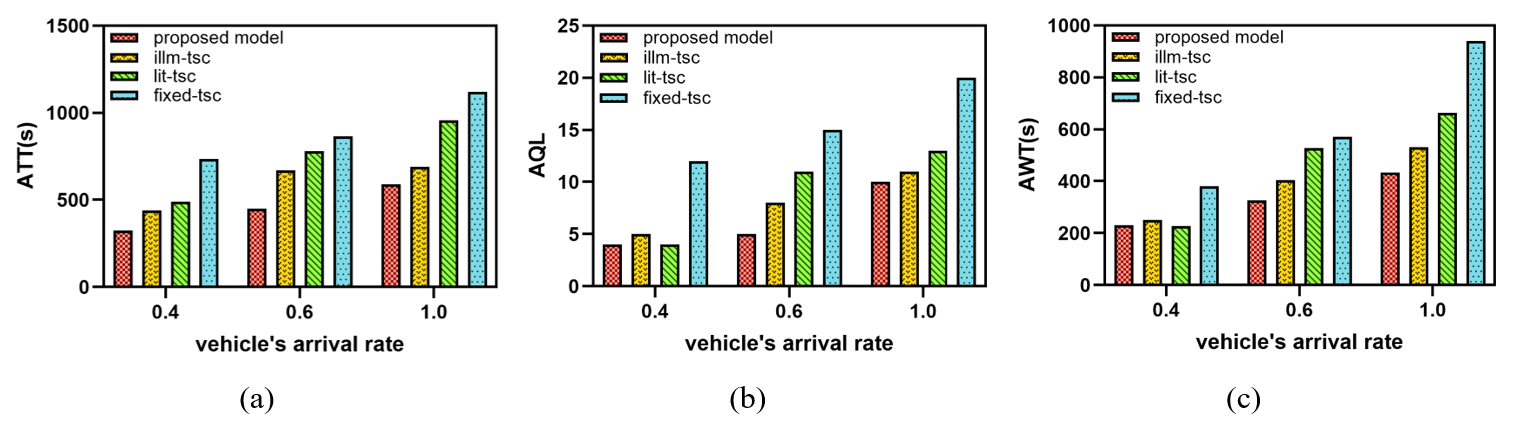

Performance comparison of proposed model, ILLM-TSC, LIT-TSC, and FIXED-TSC in rainy weather: (a) ATT, (b) AQL, and (c) AWT by vehicle arrival rate.

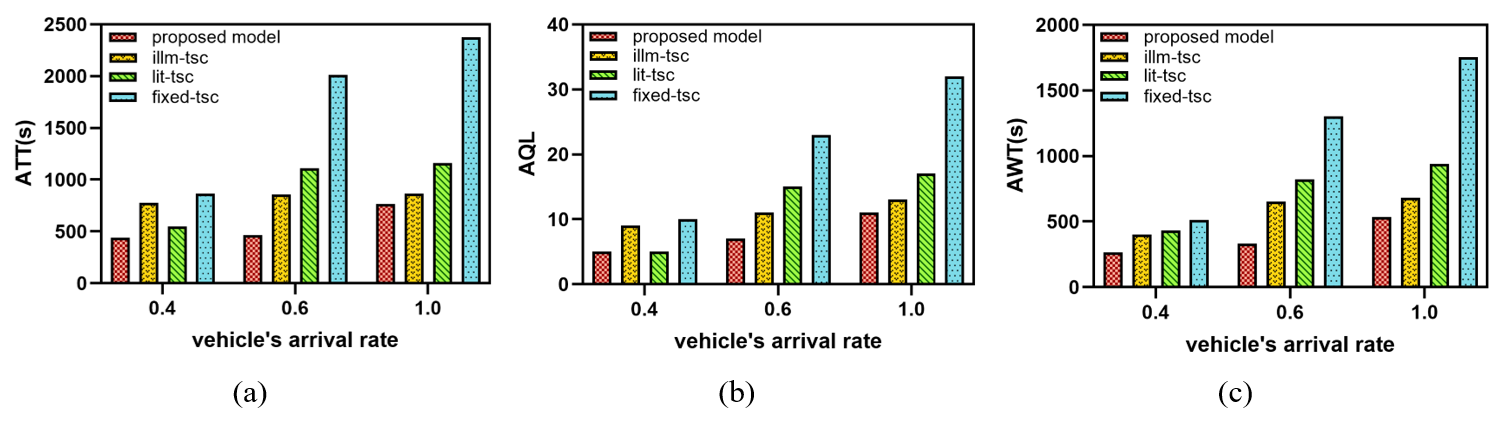

Performance comparison of proposed model, ILLM-TSC, LIT-TSC, and FIXED-TSC in snowy weather: (a) ATT, (b) AQL, and (c) AWT by vehicle arrival rate.
Experimental results show that the proposed model outperformed comparative models, with improvements of 21%–29% over ILLM-TSC, 27%–40% over LIT-TSC, and 46%–56% over FIXED-TSC. As weather transitioned from sunny to snowy conditions, traffic control became more challenging. LIT-TSC demonstrated sensitivity to weather changes, while ILLM-TSC exhibited limitations under low vehicle arrival rates in snowy conditions. These findings emphasize the limitations of single-objective reward functions. In contrast, the proposed model maintained stable performance across varying conditions and demonstrated adaptability. Additionally, using an LLM to adjust reward weights was more effective than feedback-based action adjustments in fundamentally improving the RL policy.
5. Conclusion
This study proposes a D3QN-based traffic signal control algorithm that uses an LLM to dynamically adjust multi-objective reward weights based on traffic conditions in real time. Experimental results showed that LLM-driven weight adjustment enabled balanced optimization of queue length and waiting time or allowed a focus on specific objectives to ensure stable performance, demonstrating high adaptability. Future research will expand this approach to multi-intersection environments, where the LLM will analyze neighboring traffic conditions to prioritize RL-based signal control.
