** High Shock-Resistant Design of Piezoresistive High-g Accelerometer **

Yongle Lu , Zhen Qu , Jie Yang , Wenxin Wang , Wenbo Wang and Yu Liu

## Article Information

## Abstract

**Abstract:** To improve the shock-resistance of piezoresistive high-g accelerometer, we propose a design of piezoresistive high-g accelerometer. The accelerometer employs special-shaped proof masses system with a cross gap. Four tiny sensing beams are bonded above the cross gap. The expression of the deformation, natural frequency and damping is deduced, and the structural parameters are optimized. The accelerometer structure is simulated and verified by finite element method (FEM) simulation. The results show that the range of the accelerometer can reach 200,000 g, the natural frequency is 453.6 kHz, and the cross-axis sensitivity of X-axis and Y-axis is 0.25% and 0.11%, respectively, which can apply to the measurement of high shock. Contrastively, the cross-axis sensitivity of X-axis and Y-axis is respectively, reduced by 93.2% and 96.9%. The sensitivity of our accelerometer is 0.88 μV/g. It is of great value for the application of piezoresistive high-g accelerometer with high shock-resistance.

**Keywords:** FEM , High-g Accelerometer , Natural Frequency , Piezoresistive , Transverse Effect

## 1. Introduction

High-g accelerometer is one of the important components on impact, which has been used in auto¬motive airbags [1,2], military weapons [3], industrial production [4] and other harsh environments [5-7]. Of them, piezoresistive high-g accelerometer is based on the effect of stress on electrical properties, which is essentially from displacement of the spring-mass system [8]. It is widely used in high-g measurement of civil or military field because of the characteristics of simple signal processing circuits [9], strong resistance to impact [10], low cost [11], and so on.

The application in high impact situations put forward higher requirements for the performance of high-g accelerometers. When designing high-g accelerometers, some researchers proposed novel structures or effective packaging method to ensure survival and accurate measurement of high-g accelerometers in harsh environments. In addition, some new materials or new fabrication processes are used to improve its performance [12]. An earlier record in 2009 showed that Atwell et al. [13] designed a piezoresistive high-g accelerometer using 6H-SiC. According to the high-g simulation, the accelerometer had a range above 100,000 g and a sensitivity up to 343 nV/g. Shi et al. [14] presented a novel piezoresistive high-g

accelerometer in 2018, which employed our-beams and central-island mass silicon structure. The sensitivity and the natural frequency of the accelerometer were 0.5611 [TeX:] $$\mu \mathrm{V} / \mathrm{g}$$ and 408.19 kHz, respectively. The accelerometer had also shown stability in shock experiments. Their team proposed “high-solid-wave unloading” packaging method in 2020 [15]. In shock testing, the survival rate of the accelerometers with this packaging system was up to 100% and the measurement accuracy reached 95%. Jia et al. [16] proposed a piezoresistive shock accelerometer with four self-supporting beams to enhance sensitivity and natural frequency. The pure axial deformation can occur on its microbeams after dimensions optimization. The sensitivity of the shock accelerometer is [TeX:] $$1.586 \mu \mathrm{V} / \mathrm{g} / 3 \mathrm{~V}$$ and the natural frequency is 445 kHz according to impact tests. In 2021, Jangra et al. [17] put forward a high-g Z-axis accelerometer with serpentine spring structure, which had high displacement sensitivity (approximately 357.68 nm/g). However, the transverse effect, one of the negative effects, is sometimes neglected in many studies of high-g accelerometer. The transverse effect will lead to the accelerometer damage due to rotation of the proof masses and it has a detrimental effect on the accuracy of measured value along sensing axis. We consider cross-axis sensitivity in the design of piezoresistive high-g accelerometer to optimize resistance to impact.

In this paper, a piezoresistive high-g accelerometer with special-shaped proof masses system with a cross gap is introduced. It has a measurement range of 200,000 g. Four tiny sensing beams are bonded above the cross gap, which can shorten the distance between the gravity center of the proof masses system and the neutral layer of supporting beams to restrain transverse effect. The tiny sensing beams can also weaken the compromise between natural frequency and sensitivity. Therefore, the accelerometer is optimized to improve shock-resistance.

This paper is organized as follows: Section 2 discusses the structure of accelerometer. In Section 3, we deduce the expression of the maximum deformation, natural frequency, and damping. In Section 4, we optimize the accelerometer by combining theory with simulation. In Section 5, we simulate and analyze the accelerometer characteristics to verify our design. Section 6 concludes this paper.

## 2. Structure Design of Accelerometer

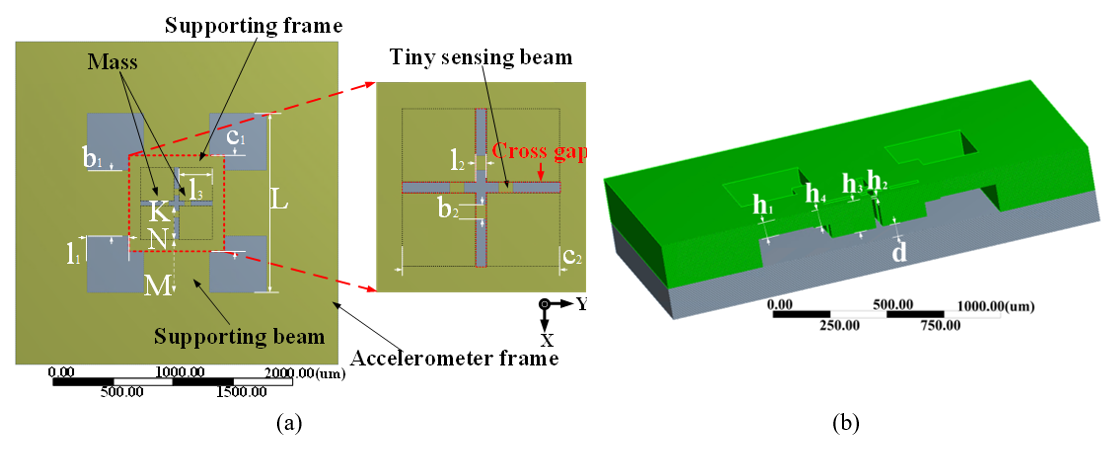

The designed accelerometer structure is schematically shown in Fig. 1. It can be seen in Fig. 1(a) that the structure is composed of four tiny sensing beams, four proof masses, a supporting frame for proof masses, four supporting beams and an accelerometer frame. The upper surfaces of all structures lie in the same plane, making accelerometers easier to fabricate [15]. Fig. 1(b) shows that proof masses have great thick-ness compared with the tiny sensing beams. There is a certain distance between the structure and the bottom plate.

The sensitive direction of the proposed accelerometer is the axis Z, which is perpendicular to the surface of the accelerometer structure. The whole structure is symmetric about the center of the plane XOY, and the two supporting beams are symmetrically distributed along the direction of the axis X and Y, respectively. Preliminarily, the accelerometer uses silicon as the main material and uses glass as a bottom floor.

## 3. Theoretical Calculation

##### 3.1 Mechanical Analysis

The cross section of supporting beam parallel to XOZ is rectangular, so the inertia moment of supporting beam is [18]:

where, [TeX:] $$b_1$$ and [TeX:] $$h_1$$ are respectively the width and thickness of supporting beam.

Under the acceleration [TeX:] $$a_z$$ along the axis Z, all parts of the structure move downward. The structure is symmetric about the center of the plane XOY, so it can be simplified into a model with two fixed ends. The fixed end of the supporting beam—denoted by the point “M” in Fig. 1(a)—is taken as the position 0 (where, [TeX:] $$x_1=0$$ in Eq. (2)), the deformation at the distance [TeX:] $$x_1$$ from the point “M” to the other fixed end—denoted by the point “N” in Fig. 1(a)—is [TeX:] $$w\left(x_1\right)$$.

According to the principle of mechanics, the relevant equations of deformation are as follows [19]:

where, [TeX:] $$F \text { and } M_0$$ are respectively, a supporting force and a constrained bending moment of the fixed end of supporting beam. [TeX:] $$m_1, m_2, \text { and } m_3$$ are respectively, the mass of the supporting beam, the mass of proof masses and the mass of the supporting frame. E is Young's modulus.

The boundary conditions for Eqs. (2) and (3) are

where, [TeX:] $$l_1$$ is the length of the supporting beam.

The bending equation of the supporting beam can be expressed as

##### (5)

[TeX:] $$w_1\left(x_1\right)=\frac{F}{2 E I} x_1{}^2\left(l_1-\frac{2}{3} x_1\right), 0 \leq x_1 \leq l_1 \text {. }$$Now, “N” point is taken as 0 position (where, [TeX:] $$x_2=0$$ in Eq. (6)), the deformation at the distance [TeX:] $$x_2$$ from the point “N” to the inside edge of the mass—denoted by the point “K” in Fig. 1(a)—is [TeX:] $$w_2\left(x_2\right)$$, and the deformation of the end of the supporting beam is equal to the outer edge of the supporting frame

The bending equations of the supporting frame and proof masses can be expressed as

##### (7)

[TeX:] $$w_2\left(x_2\right)=\frac{\left(m_2+m_3\right) a_Z}{E c_1 h_3{ }^3}\left(3 L_{N K}{ }^2-x_2{ }^2\right) x_2+w_1\left(l_1\right), \quad 0 \leq x_2 \leq L_{N K}$$where, [TeX:] $$c_1 \text { and } c_2$$ are respectively, the outer width and inner width of the supporting frame; [TeX:] $$h_3$$ is thickness of the supporting frame; [TeX:] $$L_{NK}$$ is the length between the point “N” and the point “K,” which can be expressed as:

where, [TeX:] $$l_3$$ is width of the proof mass.

##### 3.2 Calculation of Natural Frequency

According to Rayleigh-Ritz method, the natural frequency can be calculated [13,20]. The mode function of first order Y(x) of the system is approximated:

where, L is sensitive structure length. The boundary conditions for Eq. (7) are:

The first natural frequency of the system can be calculated by the following equation:

##### (11)

[TeX:] $$\omega^2=\frac{\int_0^L E I\left[Y^{\prime \prime}(x)\right]^2 d x}{\int_0^L Y^2(x) \frac{M}{L} d x}=\frac{\frac{1}{2} E I y_0{}^2 L\left(\frac{2 \pi}{L}\right)^4}{y_0{}^2 \frac{1}{2} M}$$where, M is the total mass of the accelerometer without regard to the accelerometer frame.

The natural frequency f can be obtained as

The mass of the sensing beams is four orders of magnitude less than that of other parts, so it is not included in the total mass. According to Eq. (12), the natural frequency is little affected by the size of the tiny sensing beam. In the formula, [TeX:] $$b_1 \text { and } h_1$$ are the size of the supporting beam; L is positively related to the length of the supporting beam [TeX:] $$l_1$$; and M is positively correlated with the length [TeX:] $$l_1$$ width [TeX:] $$b_1$$ and thickness [TeX:] $$h_1$$ of the supporting beam. Therefore, without changing the size of the proof masses, and without regard to the accelerometer frame, the natural frequency mainly depends on the size of the supporting beam, which can weaken the compromise between the natural frequency and the sensitivity.

##### 3.3 Calculation of Damping Ratio

Damping has effects on the dynamic performance of the vibration system, such as linearity. In the accelerometer structure, the squeeze film effect arises from the interaction of the proof masses and the air film trapped between the bottom floor and the proof masses [20]. The damping ratio of the accelerometer structure is

where, d is the distance between the proof masses and the bottom floor. is the air viscosity coefficient.

For the second order system, the system has the best dynamic performance when the damping ratio is 0.7 [20]. The damping ratio can be changed by adjusting the distance between the proof masses and the bottom floor. Through designing the bottom floor, the damping ratio can be adjusted to around 0.7.

## 4. Optimization Analysis

To avoid damage of the accelerometer structure caused by large deformation and high vibration when the accelerometer undergoes excessive impact, the structure needs further optimization. Firstly, four tiny sensing beams of size [TeX:] $$40 \mu \mathrm{m} \times 55 \mu \mathrm{m} \times 10 \mu \mathrm{m}$$ and four proof masses of size [TeX:] $$280 \mu \mathrm{m} \times 280 \mu \mathrm{m} \times 280 \mu \mathrm{m}$$ are designed. The size of the mass is far greater than that of the tiny sensing beam so that the accelerometer structure can be as sensitive as possible.

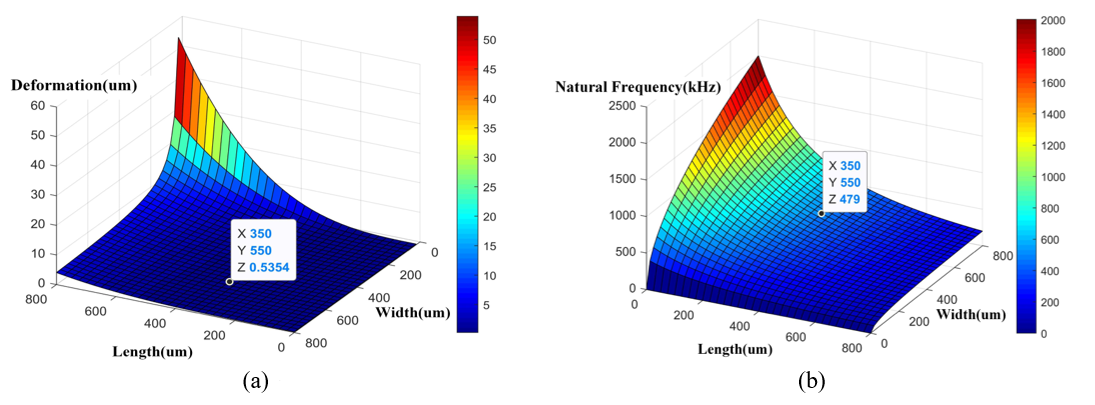

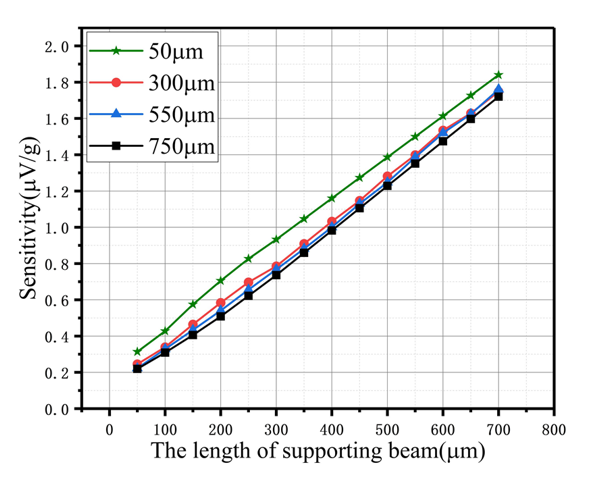

Fig. 2 shows that shorter, wider supporting beams contribute to smaller deformation on surface and high natural frequency of the accelerometer, calculated by Eq. (7) and Eq. (10), respectively.

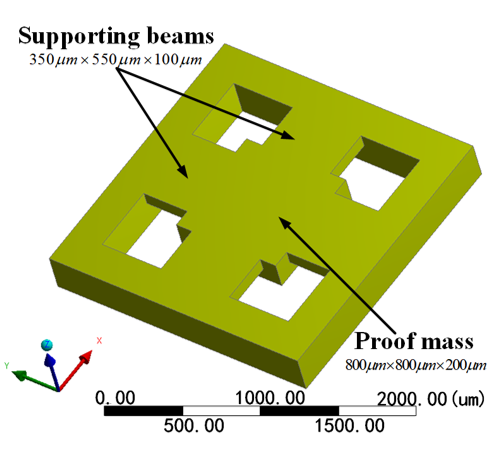

The FEM analysis software ANSYS Workbench is used to build the preliminary model, mesh and simulate the structure of the accelerometer. The density of silicon material is [TeX:] $$2,330 \mathrm{~kg} / \mathrm{m}^3$$, Young's modulus is [TeX:] $$1.7 \times 10^{11} \mathrm{~Pa}$$ [21]. Fig. 3 shows the results of sensitivity with different width and lengths of supporting beam, which shows that longer supporting beams can significantly improve sensitivity but the widths have a minor effect on sensitivity. Therefore, when sensitivity is also taken into account appropriately, the parameters of the accelerometer are showed in Table 1. When the distance between the proof masses and the bottom floor is [TeX:] $$2.55 \mu \mathrm{m},$$, the damping ratio can be close to 0.7.

## 5. Conclusion

##### 5.1 Static Analysis

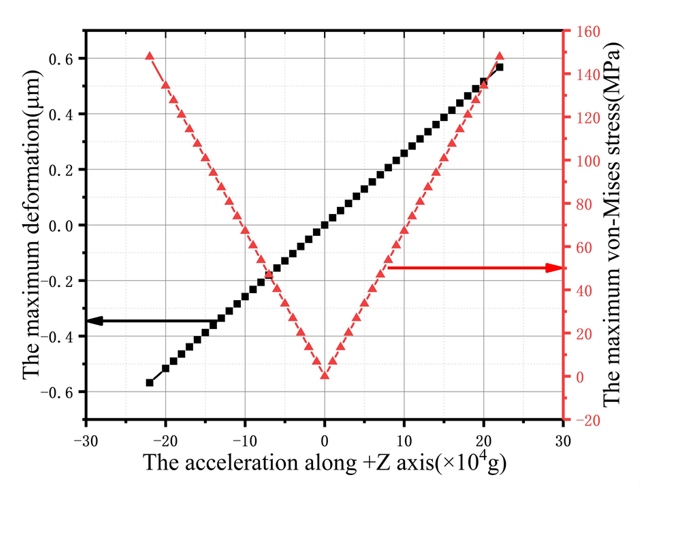

Under the acceleration from -220,000 g to 220,000 g along +Z axis, the results of maximum deformation and the maximum von-Mises stress are showed in Fig. 4 during the [TeX:] $$\pm 10 \%$$ of measuring range of the accelerometer. The maximum deformation is [TeX:] $$0.57 \mu \mathrm{m}$$ when external acceleration is 220,000 g, which is less than the distance between the proof masses and the bottom floor. The maximum von-Mises stress is 147.85 MPa when external acceleration is [TeX:] $$\pm 220,000 \mathrm{~g}$$, which is less than permissible stress of silicon [22]. So, the measuring range of the accelerometer can reach 200,000 g.

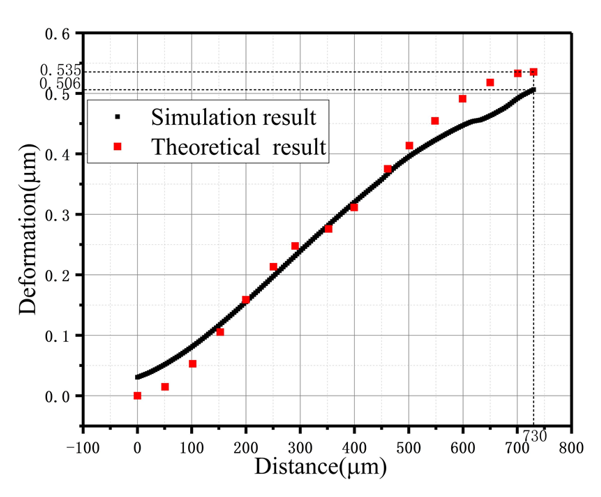

Under the acceleration of 200,000 g along the axis +Z, the theoretical results according to Eq. (7) and the simulation results of maximum deformation from the point "M" ([TeX:] $$0 \mu \mathrm{m}$$ of horizontal axis) to the point "K" ([TeX:] $$730 \mu \mathrm{m}$$ of horizontal axis) are show in Fig. 5.

##### 5.2 Sensitivity and Cross-Axis Sensitivity Analysis

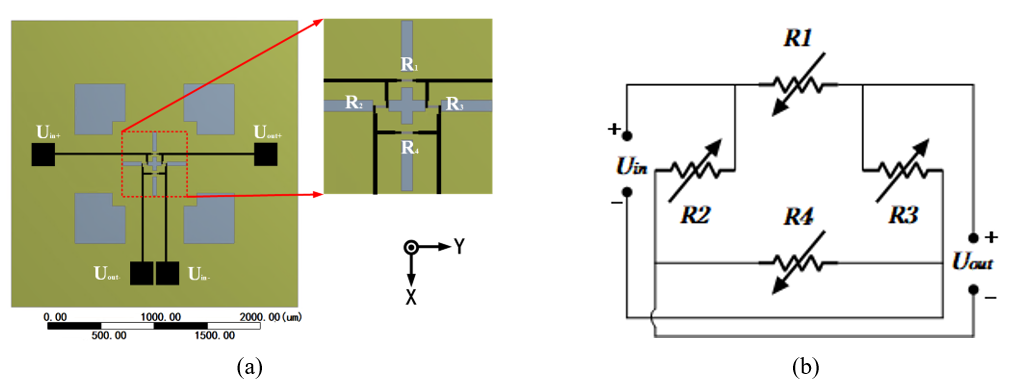

Resistors are on the surface of tiny sensing beams. The lengths of four resistors are placed in the direction X ([110] crystal orientation of p-type silicon) [23], distributed on the central position of four tiny sensing beams, respectively (as shown in Fig. 6(a)). The size of the resistor is [TeX:] $$40 \mu \mathrm{m} \times 10 \mu \mathrm{m} .$$ Wheatstone bridge circuit is adopted as the induction circuit of the accelerometer (as shown in Fig. 6(b)), with 5 V constant voltage source as the input signal [TeX:] $$U_{i n}$$.

When the accelerometer structure is not affected by acceleration, the tiny beams will not be out of shape. So, the resistance values of resistors will not change and be equal, and the Wheatstone bridge circuit has no output [24]. When the external acceleration input, the stress of [TeX:] $$R_1 \text { and } R_3$$ are equal, the stress of [TeX:] $$R_2 \text { and } R_4$$ are equal, so the output can be obtained by calculating the average stress of the resistors [TeX:] $$R_1 \text { and } R_2$$ [25].

##### (14)

[TeX:] $$U_{\text {out }}=\frac{\Delta R \cdot U_{i n}}{R}=\frac{\pi_{44}}{2} \frac{\left(\sigma_{Z X1}-\sigma_{Z Y1}\right)-\left(\sigma_{Z X2}-\sigma_{Z Y2}\right)}{2} \cdot U_{i n},$$where, [TeX:] $$U_{o u t} \text { and } U_{i n}$$ are respectively, the output and input voltage of Wheatstone bridge circuit; [TeX:] $$\sigma_{Z X 1}$$ and [TeX:] $$\sigma_{Z X 2}$$, respectively, represent the X-axis stress of the resistors [TeX:] $$R_1 \text { and } R_2$$, [TeX:] $$\sigma_{Z Y 1} \text { and } \sigma_{Z Y 2}$$, respectively represent the Y-axis stress of the resistors [TeX:] $$R_1 \text { and } R_2$$ when external acceleration is along Z-axis. [TeX:] $$\pi_{44}$$ is a piezoresistive coefficient of p-type silicon at room temperature and the value is [TeX:] $$138.1 \times 10^{-11} \mathrm{~m}^2 / \mathrm{N}$$ [26].

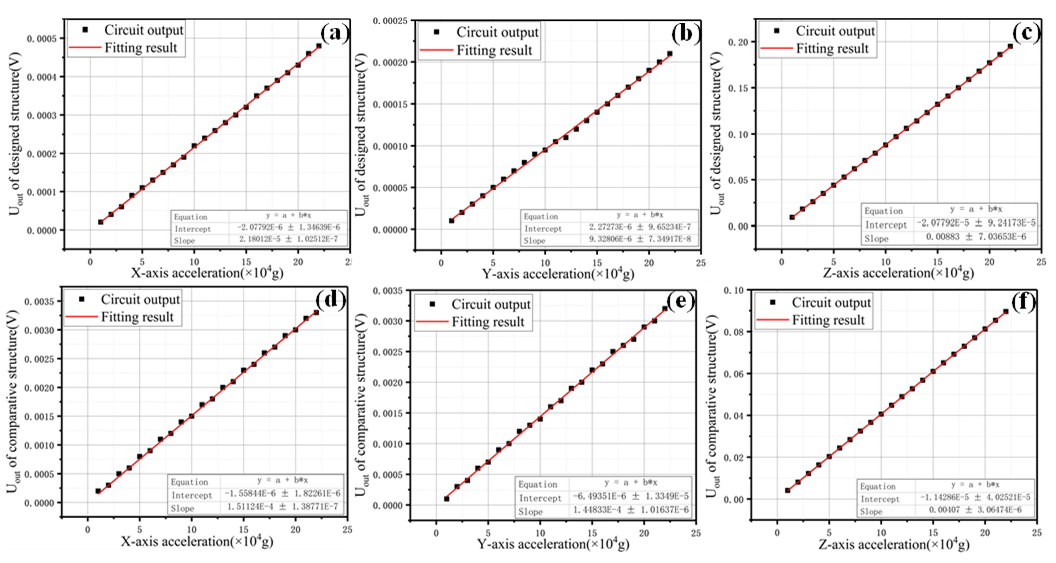

Different output under different acceleration can be calculated by Eq. (14) and the fitting result is in Fig. 8(c), so the sensitivity of the piezoresistive high-g accelerometer is [TeX:] $$0.88 \mu \mathrm{V} / \mathrm{g} \text {. }$$

When external acceleration along the axis X, the sensitivity along the axis X [TeX:] $$\left(S_X\right)$$ is as follows:

##### (15)

[TeX:] $$S_X=\frac{U_{\text {out }}}{a_X}=\frac{\Delta R \cdot U_{\text {in }}}{R \cdot a_X}=\frac{\pi_{44}}{2} \frac{\left(\sigma_{X Y 1}-\sigma_{X Z 1}\right)-\left(\sigma_{X Y 2}-\sigma_{X Z 2}\right)}{2} \cdot \frac{U_{\text {in }}}{a_X},$$where, [TeX:] $$a_x$$ is acceleration along the axis X; [TeX:] $$\sigma_{X Y 1} \text { and } \sigma_{X Y 2}$$ respectively represent the Y-axis stress of the resistors [TeX:] $$R_1 \text { and } R_2$$, [TeX:] $$\sigma_{X Z 1} \text { and } \sigma_{X Z 2}$$, respectively, represent the Z-axis stress of the resistors [TeX:] $$R_1 \text { and } R_2$$ when external acceleration is along X-axis.

When external acceleration along the axis Y, the sensitivity along the axis Y [TeX:] $$\left(S_Y\right)$$ is as follows:

##### (16)

[TeX:] $$S_Y=\frac{U_{\text {out }}}{a_Y}=\frac{\Delta R \cdot U_{\text {in }}}{R \cdot a_Y}=\frac{\pi_{44}}{2} \frac{\left(\sigma_{Y X 1}-\sigma_{Y Z 1}\right)-\left(\sigma_{Y X 2}-\sigma_{Y Z 2}\right)}{2} \cdot \frac{U_{\text {in }}}{a_Y},$$where, [TeX:] $$a_Y$$ is acceleration along the axis Y; [TeX:] $$\sigma_{Y X 1} \text { and } \sigma_{Y X 2}$$, respectively, represent the X-axis stress of the resistors [TeX:] $$R_1 \text { and } R_2$$, [TeX:] $$\sigma_{Y Z 1} \text { and } \sigma_{Y Z 2}$$, respectively, represent the Z-axis stress of the resistors [TeX:] $$R_1 \text { and } R_2$$ when external acceleration is along Y-axis.

Cross-axis sensitivity is expressed by the ratio of the sensitivity of the axis X/Y to the sensitivity of the axis Z, so the cross-axis sensitivity of the axis X [TeX:] $$\left(S_{XZ}\right)$$ and the cross-axis sensitivity of the axis Y [TeX:] $$\left(S_{YZ}\right)$$ are as follows:

##### (17)

[TeX:] $$\begin{aligned} & S_{X Z}=\frac{S_X}{S_Z} \times 100 \% \\ & S_{Y Z}=\frac{S_Y}{S_Z} \times 100 \% \end{aligned}$$Fig. 7 shows a common accelerometer structure for comparison. The sensitivity of the axis X, the axis Y and the axis Z of our proposed structure and this comparison structure are shown in Fig. 8.

##### 5.3 Model Analysis

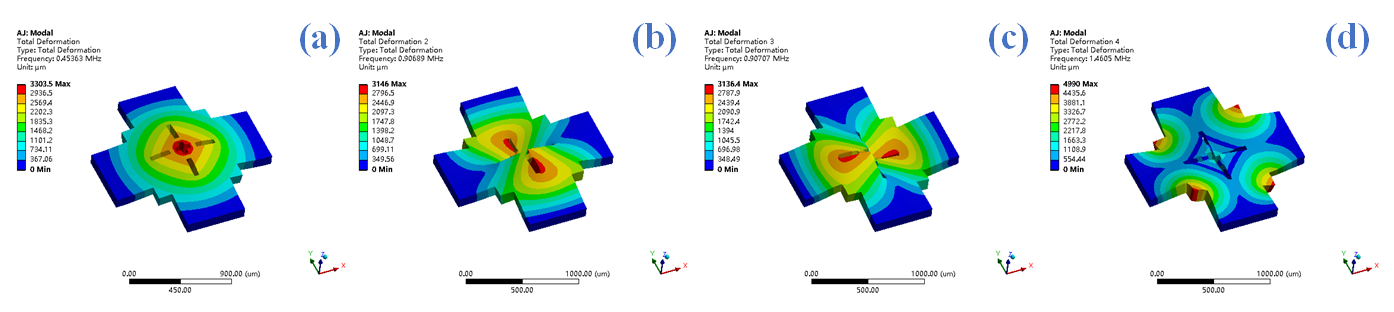

Mechanical systems have many vibrating modes and corresponding resonant frequencies. By observing the vibrating modes and the resonant frequency of the structure through modal analysis, it is possible to predict whether the resonant frequency of the structure is suitable for high vibration conditions. The first order resonant frequency is natural frequency, other resonant frequencies are higher and higher, so the first to fourth order conditions are often considered for prediction of performance [15]. The design of the high-g accelerometer should have a high natural frequency. Other resonant frequencies should be much higher than the natural frequency, and the first order vibrating mode and second order vibrating mode should be different, so as to ensure that the designed high-g accelerometer can work normally in a vibration environment. In modal analysis, the end of the support beams is fixed, the first-four vibrating modes of the accelerometer sensitive structure are shown in Fig. 9, whose resonant frequencies are shown in Table 2.

In Fig. 9, the first order vibrating mode is characterized with the proof masses perpendicular to the XOY plane and reciprocating along the axis Z, which is the main mode with the natural frequency of 453.6 kHz. If the structure generates vibrations close to the natural frequency, the center of the structure (the red area in Fig. 9(a)) is most vulnerable. The second order and the third order vibrating mode have similar resonant shapes and resonant frequencies. Their resonant frequencies are more than twice of the natural frequency, which is conducive to reducing the mode interference [27]. Last, the fourth order vibrating mode is characterized with two proof masses on one side of the YOZ plane and two proof masses on the other side rotating clockwise and counterclockwise about the axis Y, respectively.

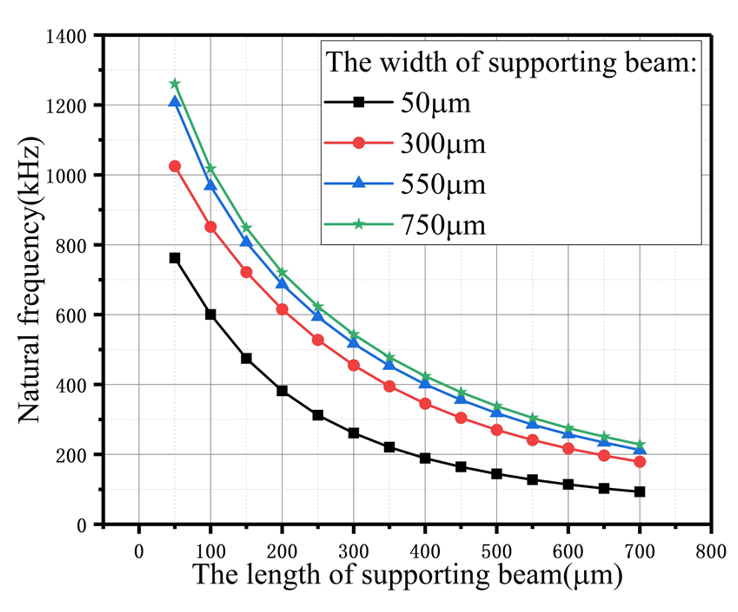

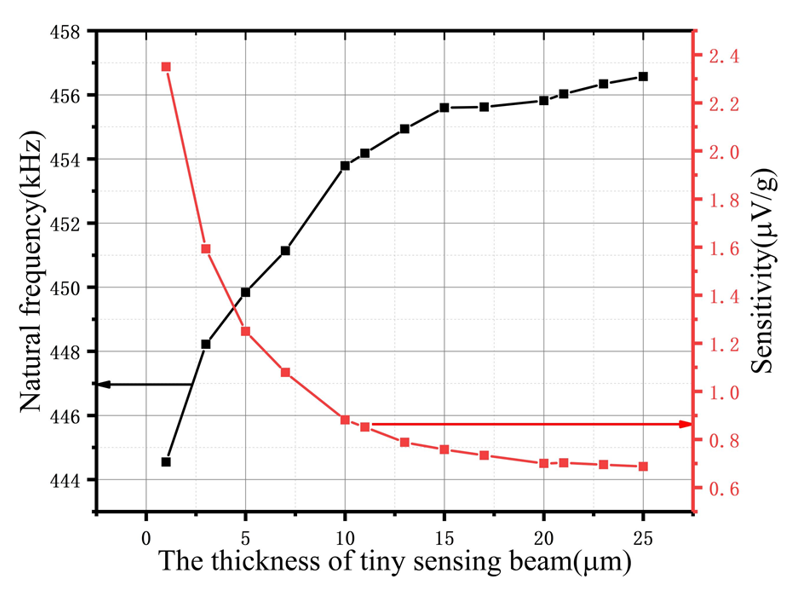

Fig. 10 shows the natural frequency with different widths and lengths of supporting beam, which is consistent with Eq. (12) that shorter and wider supporting beam can improve natural frequency. Since the length of the tiny sensing beam is equal to the width of the cross gap, and in order to avoid the influence of the width of the tiny sensing beam on the position of the resistor, Fig. 11 shows that the thickness of tiny sensing beam has minor effect on natural frequency, which is consistent with Eq. (12), but thicker tiny sensing beam can improve sensitivity. So, combined with the results obtained in Section 4 that the width of supporting beam has minor effect on sensitivity, then the accelerometer structure can weaken the compromise between natural frequency and sensitivity.

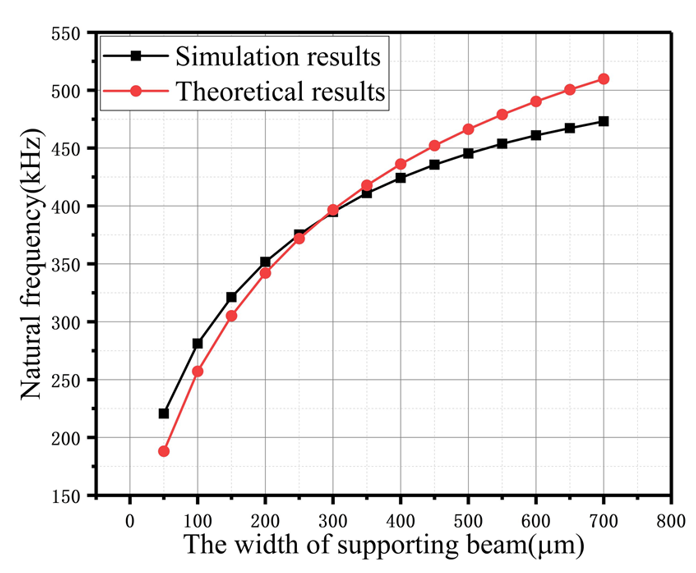

Fig. 11 shows the simulation and theoretical results of natural frequency with different widths of supporting beam. The theoretical results of natural frequency can be calculated according to Eq. (12). The simulation results agree with the theoretical ones with 5% bias, which is the average of biases per width sample—it is in total fourteen width samples in Fig. 12. The bias mainly comes from the deviation between the selected mode function and the actual mode function. Since Rayleigh method is an approximate estimation and simplifies the mode function to the expression of sine function, the selected mode function cannot be exactly the same as the actual mode function.

##### 5.4 Impact Simulation

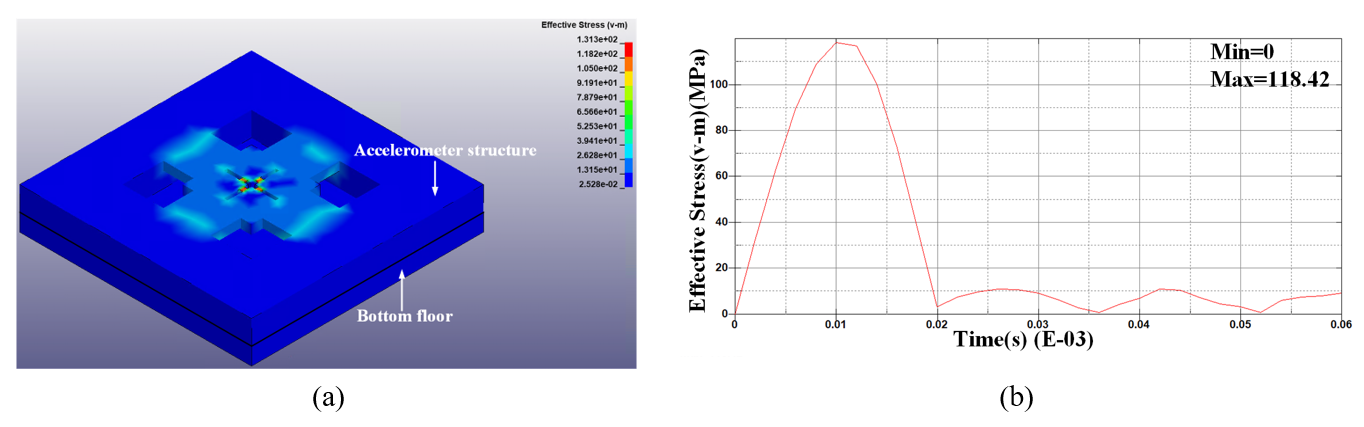

To test the dynamic characteristics of the accelerometer, we carry out an impact simulation. Ansys Workbench LS-DYNA is usually used to solve the time related problem, such as structural collision and impact [28].

In LS-DYNA, 200,000 g impact is given to the accelerometer surface. The impact waveform is a half sine wave, whose duration is [TeX:] $$20 \mu \mathrm{s} .$$ And observation time is [TeX:] $$40 \mu \mathrm{s}$$ after impact. Fig. 13(a) shows that the stress mainly focused on the tiny sensing beams. Fig. 13(b) shows that the tiny sensing beams take 118.42 MPa impact, less than permissible stress of silicon. There is vibration after impact. The results show that the piezoresistive high-g accelerometer has strong resistance to impact.

##### 5.5 Summary and Comparison

Table 3 summarizes the comparison of the proposed piezoresistive high-g accelerometer with existing devices [3,15,16,18,29]. The piezoresistive high-g accelerometer with the proposed structure has higher natural frequency and lower transverse effect. Only the structure is optimized, so this accelerometer can be produced by using silicon and basic processing. It is suitable for mass production. However, compared with triaxial accelerometers, there are some limitations when using proposed Z-aixs accelerometer. Using three single-axis devices to measure three vectors may increase the volume and complexity of the measurement system.

## 6. Conclusion

To improve natural frequency and to reduce transverse effect of piezoresistive high-g accelerometer, we introduce the design and simulation of a piezoresistive high-g accelerometer. Special-shaped proof masses system with a cross gap can shorten the distance between the gravity center of the proof system and the neutral layer of supporting beams to restrain the transverse effect. Four tiny sensing beams are bonded above the cross gap, which can weaken the compromise between natural frequency and sensitivity. The simulation results show that the natural frequency of the piezoresistive high-g accelerometer is 453.6 kHz and the sensitivity is [TeX:] $$0.88 \mu \mathrm{V} / \mathrm{g} \text {. }$$ The cross-axis sensitivity of the axis X axis and the axis Y is respectively, 0.25% and 0.11%. Contrastively, the cross-axis sensitivity of X-axis and Y-axis is respectively, reduced by 93.2% and 96.9%. It has a higher natural frequency and a lower transverse effect and the results of impact simulation meet the requirements. Our research provides a support for the application of design and fabrication of piezoresistive high-g accelerometers.

## Biography

##### Yongle Lu

https://orcid.org/0000-0002-0837-5793He received M.S. degree from Chongqing University of posts and telecommunications in 2012. He received the Ph.D. degree in instrument science and technology at Chongqing University in 2015. He is associate professor at Chongqing University of Posts and Telecommunications and a director of Chinese Institute of Inertial Technology. His research interests include solid state vibration gyro and photoelectric sensing technology.

## Biography

##### Jie Yang

https://orcid.org/0000-0002-1420-2127He received B.S. degree in integrated circuit design and integrated system from Chongqing University of Posts and Telecommunications in 2021. Since September 2021, he is purchasing M.S. degree in School of Optoelectronic Engineering of Chongqing University of Posts and Telecommunications. His current research interests include inertial components and system, navigation and positioning.

## Biography

##### Wenxin Wang

https://orcid.org/0000-0002-7497-7397He received B.S. degree in integrated circuit design and integrated system from Chongqing University of Posts and Telecommunications in 2019. Since September 2019, he is purchasing M.S. degree in School of Optoelectronic Engineering of Chongqing University of Posts and Telecommunications. His current research interests include inertial components and system, navigation and positioning.

## Biography

##### Wenbo Wang

https://orcid.org/0000-0001-9001-2846He received B.S. degree in electronic science and technology from Chaohu college in 2018. Since September 2019, he is purchasing M.S. degree in School of Optoelectronic Engineering of Chongqing University of Posts and Telecommunications. His current research interests include quantum optics and optical fiber sensing.

## Biography

##### Yu Liu

https://orcid.org/0000-0002-8555-5640He received M.S. and Ph.D. degrees in Chongqing University in 2000 and 2006, respectively. He is a professor and doctoral supervisor at Chongqing University of Posts and Telecommunications. He has been researching sensor parts and systems, motion detection, attitude measurement, navigation and positioning for a long time.
